Product description
| Product name |
hollow section square tube |
| Wall Thickness |
0.7mm--13mm |
| Length |
1--14m According to customer requirements ... |
| Outer Diameter |
20mm*20mm---400mm*400 |
| Tolerance |
Tolerance based on Thickness: ±5～±8% |
| Shape |
square |
| Material |
Q195---Q345, 10#, 45#, S235JR, GR.B-D, STK500, BS1387...... |
| Surface treatment |
Galvanized |
| Zinc coating |
Pre-galvanized square tube: 40--220G/M2; Hot dip galvanized square tube: 220--350G/M2 |
| Standard |
ASTM, DIN, JIS, BS |
| Certificate |
ISO, BV, CE, SGS |
| Payment terms |
30% T/T deposit in advance, 70% balance after B/L copy; 100% Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L copy 20--30days |
| Delivery times |
25 days after receive ur deposits |
| Package |
1. Through a bundle
2. According to customer’s requirement
|
| Loading port |
Tianjin/Xingang |
What benefits do customers get
- We are a factory, providing competitive price advantages over trading companies.
- Guaranteed delivery dates: We ensure on-time delivery with premium quality to achieve full customer satisfaction.
Product detail
Thickness
Length
Diameter

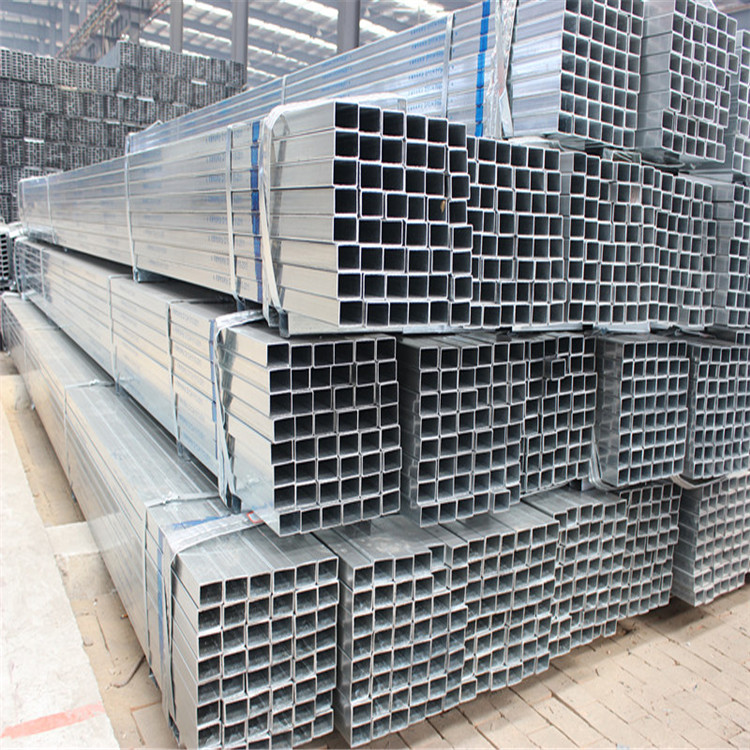

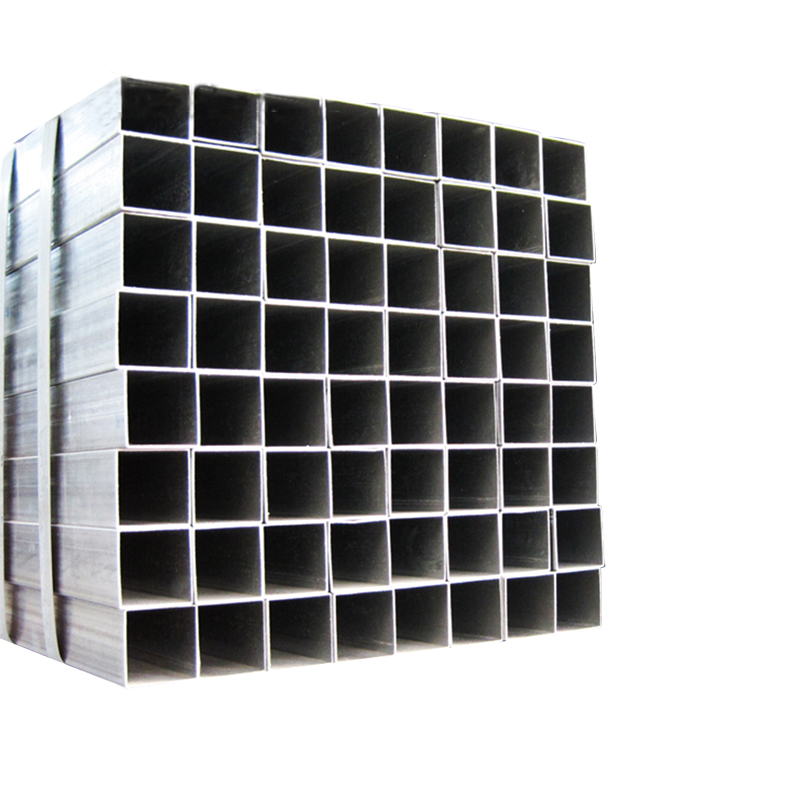

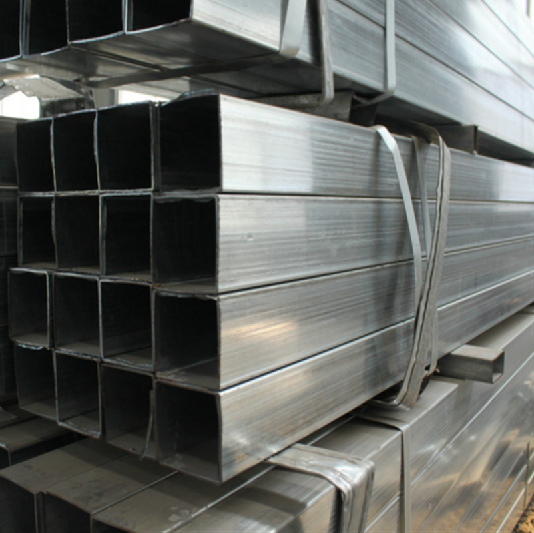

Product photos
Zinc coating
Diameter detail
Different from other factories
- We have successfully obtained 3 design and structure patents (Groove pipe, Shoulder pipe, Victaulic pipe).
- Strategic location: Our manufacturing site is located just 40 kilometers from Xingang port, the largest port in Northern China.
- Advanced manufacturing capacity: Our facilities include 4 pre-galvanized production lines, 8 ERW steel pipe lines, and 3 hot-dipped galvanized process lines.
Product photos
Customer case
An Australian customer purchased powder-coated pre-galvanized steel square tubes. Upon initial receipt, they tested the adhesive strength between the powder coating and the tube surface, finding it to be lower than required. We immediately held joint technical meetings and conducted extensive testing. By polishing the tube surface and pre-heating it in the furnace, we developed an optimized surface preparation process. After rigorous trials, the customer was completely satisfied, and they now place high-volume monthly orders.
Customer photos
The customer purchased steel pipes from our facility. Once production was completed, the customer visited our factory for a hands-on inspection of the goods.
Produce products
Frequently Asked Questions (FAQ)
What size ranges do you offer for hollow section square tubes?
Our hollow section square tubes are available in outer diameters from 20mm*20mm to 400mm*400mm, with wall thicknesses ranging from 0.7mm to 13mm. Custom lengths from 1 to 14 meters can also be supplied upon request.
What types of surface treatments do you provide?
We specialize in galvanized surface treatments. This includes pre-galvanized square tubes with a zinc coating range of 40 to 220G/M², and hot-dip galvanized square tubes ranging from 220 to 350G/M² for higher corrosion resistance.
What standards and certifications do your steel pipes meet?
All our products are manufactured in compliance with international standards, including ASTM, DIN, JIS, and BS. We also hold ISO, BV, CE, and SGS certifications to ensure global quality compliance.
What are your standard payment and delivery terms?
Our standard payment terms are a 30% T/T deposit in advance, with the remaining 70% balance due after receiving the B/L copy. We also accept 100% Irrevocable L/C at sight. The typical delivery timeline is 25 days following receipt of the deposit.
Do you support third-party product inspections?
Yes. We welcome customer visits and third-party inspections. We regularly host clients at our factory to verify product compliance and check ready goods before shipment.
