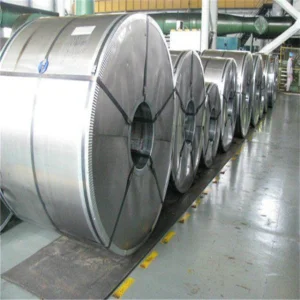

Discover our flagship range of heavy-duty and light-duty adjustable scaffolding columns, pre-galvanized coils, and structural steel tubes engineered for maximum structural reliability.

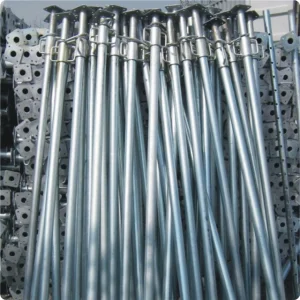

In the dynamic field of high-rise construction, heavy infrastructure engineering, and commercial concrete casting, temporary support structures carry a crucial responsibility: maintaining load-bearing equilibrium. As a leading manufacturer of high-strength adjustable steel props, we specialize in delivering structural support systems that combine raw capability with long-term cost-efficiency.
Our steel props are fabricated using certified carbon structural steel (Q235 and Q345 grade), providing high yield strength values and resistance to deformation under axial load limits.
Equipped with optimized thread pitches and heavy-duty collar pins, our shoring pillars easily adapt from 1.6 meters up to 5.0 meters to meet complex formwork heights.
We offer diverse protective finishes, including hot-dip galvanization (HDG), pre-galvanization, and high-performance powder coatings to withstand harsh coastal and chemical environments.
Established in 1998, Tianjin Minjie Steel Co., Ltd. has expanded into an advanced manufacturing base spanning over 70,000 square meters. Strategically located just 40 kilometers from Tianjin's XinGang Port—the primary maritime export hub in Northern China—we provide fast, cost-effective shipping networks to international construction firms and building supply distributors.
Our advanced industrial plant is equipped with 4 pre-galvanized manufacturing lines, 8 high-frequency ERW steel pipe lines, and 3 hot-dip galvanized coating lines. This vertically integrated manufacturing process allows us to control steel pipe dimensions, wall thickness tolerances, and chemical composition from raw hot-rolled coils directly to finished structural columns.
Operating under strict alignment with ISO9001:2015 quality management frameworks, we produce construction components in adherence with British, American, and European industry standards, including BS4074, EN1065, and ASTM specifications.
The international scaffolding and structural shoring prop market is driven by urban expansion, high-speed rail developments, and modern cast-in-place concrete techniques. Procurement managers prioritize safety, material longevity, and logistics efficiency.
In mature European and North American building sectors, shoring systems must align with strict safety parameters (such as BS EN 1065 structural certifications). These regions require integrated safety mechanisms, including hand-clearance features that prevent pinch injuries and anti-dislodgement systems that prevent the inner tube from slipping out during height adjustments.
In developing infrastructure zones across the Middle East, Southeast Asia, and South America, rapid concrete frame construction requires resilient, easy-to-assemble support systems. Light-duty adjustable scaffolding columns (utilizing 48mm outer tubes and 40mm inner tubes) are widely chosen in these markets for their balance of high loading capacity and lightweight design, ensuring simple handling on-site.
Tianjin is a globally recognized steel manufacturing hub, offering key structural advantages:
Shoring prop design is based on structural column buckling mechanics. As an adjustable scaffolding column extends, its load-bearing capacity decreases due to changes in its slenderness ratio. Correct mechanical design is vital to prevent formwork collapse under wet concrete and dynamic construction loads.
| Steel Grade & Composition | Yield Strength (Mpa) | Outer/Inner Tube Diameter (mm) | Wall Thickness (mm) | Height Range (m) | Safe Working Load - Closed (kN) | Safe Working Load - Extended (kN) |
|---|---|---|---|---|---|---|
| Q235 (Light Duty) | 235 | 48 / 40 | 1.8 - 2.2 | 1.6 - 3.0 | 20.0 | 10.5 |
| Q235 (Medium Duty) | 235 | 56 / 48 | 2.0 - 2.5 | 2.0 - 3.5 | 28.5 | 15.0 |
| Q345 / S355 (Heavy Duty) | 345 | 60 / 48 | 2.5 - 3.2 | 2.2 - 4.0 | 35.0 | 22.0 |
| Q345 / S355 (Ultra Heavy Duty) | 345 | 76 / 60 | 3.0 - 4.0 | 3.0 - 5.0 | 50.0 | 30.0 |
Critical Column Buckling Formula: The critical load ($P_{cr}$) is calculated using Euler's buckling equation:
P_cr = (π² * E * I) / (K * L)²
Where E is the modulus of elasticity of steel, I is the area moment of inertia of the steel tube section, L is the unsupported height of the prop, and K is the column effective length factor (dependent on end connections). By choosing custom combinations of wall thickness, base plate designs, and high-tensile steel grades, our engineers design steel props with optimal safety factors to meet challenging high-clearance construction requirements.
Every steel prop produced at Tianjin Minjie undergoes rigorous testing to ensure reliability and structural integrity under high structural loads.
We use non-destructive testing (NDT) and ultrasonic testing to verify that the weld seams between the base plates, inner sleeves, and adjustment collars are completely free from air pockets, micro-cracks, and heat-affected zone defects.
Samples from each manufacturing batch are subjected to heavy hydraulic presses to confirm that ultimate buckling loads exceed safe load specifications by a minimum factor of 2.0.
We use digital electromagnetic gauges to verify that our hot-dip galvanized coating thickness meets standard requirements, providing reliable long-term protection against atmospheric corrosion.
Tianjin Minjie products are trusted on large-scale infrastructure projects worldwide. We build long-term relationships through on-site cooperation, quality verification, and reliable engineering support.
In September 2019, our engineering team visited key infrastructure developers in Singapore to verify prop loading calculations on site, resulting in long-term shoring supply contracts.
Our long-term Australian partners visited our Tianjin facilities in November 2018 to perform batch testing on structural steel props, confirming compliance with local load-bearing standards.
Following initial cooperation at the Canton Fair, our Saudi Arabian clients visited our manufacturing plant in 2018 to establish a continuous supply agreement for heavy-duty shoring props.
In 2019, structural engineers from South Korea visited our facility to review prototype designs, initiating a collaborative project for custom-profiled support pillars.
After evaluating several domestic and international suppliers, a leading Indian scaffolding supplier signed a monthly supply agreement with our factory in 2019.
In June 2017, a Lebanese distributor completed an on-site factory audit and signed an initial order for 1,000 tons of structural steel tubing and shoring equipment.
We offer a versatile catalog of building materials, including pre-galvanized pipes, hot-dip coils, structural carbon pipes, and greenhouse steel solutions.
Read our detailed Q&A covering key design specifications, safety guidelines, and logistics factors for international buyers sourcing adjustable shoring solutions.
The difference lies in the tube outer diameters and wall thicknesses. Light-duty props typically use a 48mm outer tube and a 40mm inner tube, with wall thicknesses between 1.5mm and 2.0mm. Heavy-duty props use wider outer tubes (often 60.3mm or 76.1mm) with inner tubes (typically 48.3mm or 60.3mm) and wall thicknesses between 2.5mm and 4.0mm. Heavy-duty designs are preferred for high-clearance civil formwork, while light-duty options provide a cost-effective, easy-to-handle choice for residential masonry.
We offer three primary finishes: Painted/Powder Coated, Pre-Galvanized, and Hot-Dip Galvanized (HDG). Painted props are budget-friendly and suitable for dry climates or indoor use. Pre-galvanized props use pre-coated steel sheets, providing moderate rust protection. Hot-dip galvanized props are dipped in molten zinc after fabrication, coating both inner and outer surfaces with a 50-80 micron protective layer. This makes HDG props the standard choice for humid, coastal, or industrial construction sites.
Load capacity is verified using hydraulic press tests and column buckling models (such as Euler's formula). The load capacity decreases as the prop is extended because a longer column is more susceptible to bending under pressure. A prop with a 30kN capacity when closed may support 15kN when fully extended. Project engineers must reference the manufacturer's load curves to match expected concrete weights with the correct prop extension heights.
Essential safety features include: (1) Anti-pinch hand clearance (leaving at least 100mm of space near the collar when the inner tube is closed to prevent hand injuries), (2) Inner tube anti-dislodgement stops (a mechanical block preventing the inner tube from sliding completely out), and (3) Certified G-pins or lock pins made from high-strength steel (typically 8.8 structural rating) to securely support the collar load.
Our QA team performs comprehensive checks, including chemical analysis of each steel batch, ultrasonic weld inspections on the end plates, thread tolerance tests, and coating thickness measurements. Customers are welcome to arrange third-party inspections (such as SGS or Bureau Veritas) at our Tianjin factory prior to shipping.
