China Hot Dip Galvanized Scaffolding Carbon Welded Steel Pipe Manufacturer, Factory





Product Description

Product Detail
Galvanized Steel Pipe Overview
Product Name Galvanized Steel Pipe
Out Diameter Pre galvanized: 1/2''-4'' (21.3-114.3mm), such as 38.1mm, 42.3mm, 48.3mm, 48.6mm or as customer request.
Hot dipped galvanized: 1/2''-24'' (21.3mm-600mm), such as 21.3mm, 33.4mm, 42.3mm, 48.3mm, 114.3mm or as customer request.
Thickness Pre galvanized: 0.6-2.5mm.
Hot dipped galvanized: 0.8-25mm.
Zinc coating Pre galvanized: 5μm-25μm
Hot dipped galvanized: 35μm-200μm
Type Electronic Resistance Welded (ERW)
Steel Grade Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Standard BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Surface Finish Pre-galvanized, Hot dipped galvanized, Electro galvanized, Black, Painted, Threaded, Engraved, Socket.
International Standard ISO 9000-2001, CE CERTIFICATE, BV CERTIFICATE
Packing 1. Big OD: in bulk
2. Small OD: packed by steel strips
3. Woven cloth with 7 slats
4. According to the requirements of customers
Main Market Middle East, Africa, Asia and some European countries, South America, Australia
Country of origin China
Productivity 5000 Tons per month.
Remark 1. Payment terms: T/T, L/C
2. Terms of trade: FOB, CFR, CIF, DDP, EXW
3. Minimum order: 2 tons
4. Delivery time: Within 25 days.
Galvanized Steel Tube Applications

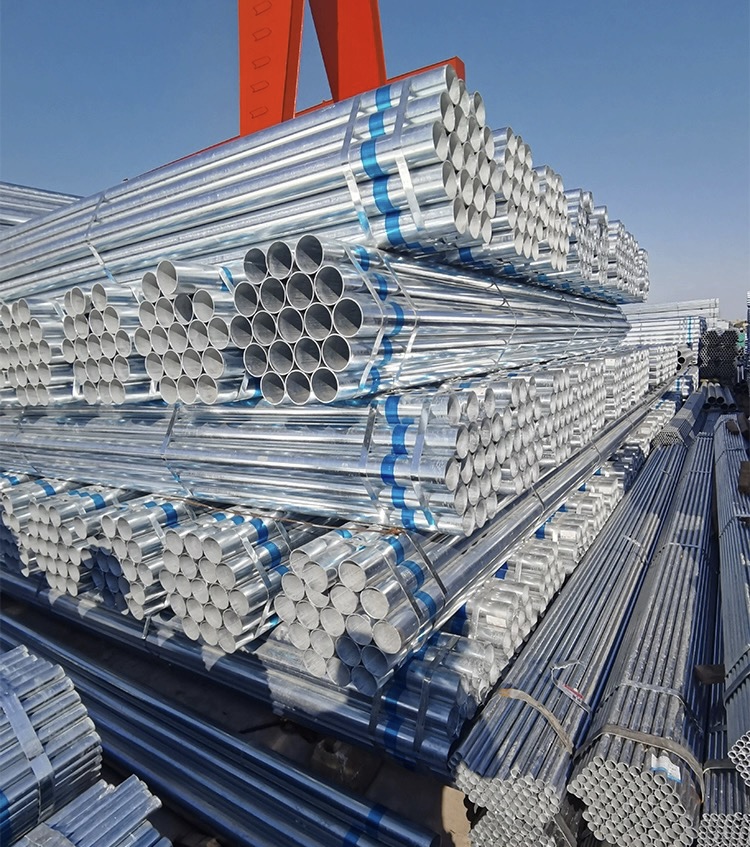

Applications Focus
  • Construction / building
  • Materials steel pipe
  • Scaffolding pipe
  • Fence post steel pipe
  • Fire protection steel pipe
  • Greenhouse steel pipe
  • Low pressure liquid, water, gas, oil, line pipe
  • Irrigation pipe
  • Handrail pipe
Application Use Case
Details Images
  • The steel supplied is enclosed with the original material book of the steel factory.
  • Customers can choose any length or other requirements they want.
  • Ordering or purchasing all kinds of steel products or special specifications.
  • Adjust the temporary lack of specifications in this library, saving you from the trouble of rushing to purchase.
  • Transport services can be delivered directly to your designated place.
  • For the materials sold, we are responsible for the overall quality tracking, eliminating your worries.
Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5
Packing & Delivery
Packing Type A Packing Type B
  • Waterproof plastic bag then bundle with strip, On the all.
  • Waterproof plastic bag then bundle with strip, On the end.
  • 20ft container: not more than 28mt. and the length is not more than 5.8m.
  • 40ft container: not more than 28mt. and the length is not more than 11.8m.
Delivery Process
Products Machining
Machining Option A Machining Option B Machining Option C
  • All the pipes are high-frequency welded.
  • Both inner and outer welded stab can be removed.
  • Special design available according to requirement.
  • Pipe can be necked down and punched holes and so on.
  • Supplying BV or SGS Inspection if client needs.
Machined Tube Product
Our Company
Factory Facilities
Our factory was established in 1998. It spans more than 70,000 square meters and is located just 40 kilometers from the local port, which is the biggest port in the north of China. We are a professional manufacturer and exporter of steel products. The main products are pre galvanized steel pipe, hot dip galvanized pipe, welded steel pipe, square & rectangular tube and scaffolding products. We applied for and received 3 patents: groove pipe, shoulder pipe and victaulic pipe. Our manufacturing equipment includes 4 pre-galvanized product lines, 8 ERW steel pipe product lines, and 3 hot-dipped galvanized process lines. All production complies with GB, ASTM, DIN, and JIS standards. The products are certified under the ISO9001 quality system.
ISO Certification
Annual output of various pipe is more than 300 thousand tons. We have obtained yearly honor certificates issued by the municipal government and quality supervising bureau. Our products are widely applied to machinery, steel construction, agricultural vehicles and greenhouses, auto industries, railways, highway fences, container inner structures, furniture, and steel fabrication. Our company owns first-class professional technique advisers and excellent staff with professional technology. The products have been sold all over the world. We believe that our high quality products and services will be your best choice. We hope to earn your trust and support, and sincerely look forward to long-term cooperation with you.
Factory Product Line 1 Factory Product Line 2 Factory Product Line 3 Factory Product Line 4 Factory Product Line 5 Factory Product Line 6 Factory Product Line 7 Factory Product Line 8 Warehouse Stock 1 Warehouse Stock 2 Warehouse Stock 3
Frequently Asked Questions
Q1: What are the main differences between pre-galvanized and hot-dipped galvanized steel pipes?
A: Pre-galvanized pipes have a zinc coating thickness of 5μm-25μm and an outer diameter range of 1/2''-4'', which is suitable for lightweight structure and indoor applications. Hot-dipped galvanized pipes have a thicker coating of 35μm-200μm and outer diameter up to 24'', making them highly corrosion-resistant for outdoor environments.
Q2: Which international quality and production standards do your steel pipes meet?
A: Our products comply with major global standards including BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, and ASTM A53. We are also ISO9001 certified.
Q3: Do you support customized machining for the steel pipes?
A: Yes, we provide multiple custom options like necking down, punching holes, removing internal or external welded stabs, threading, and specific end finishes.
Q4: What is the typical packing and container loading capacity for shipments?
A: Large OD pipes are shipped in bulk, while small OD pipes are bundled with steel strips and wrapped in woven cloth. A standard 20ft container carries up to 28mt (length ≤ 5.8m), and a 40ft container carries up to 28mt (length ≤ 11.8m).
Q5: What are your payment terms and minimum order quantity (MOQ)?
A: Our minimum order quantity is 2 tons. We support payment terms of T/T and L/C, and commercial terms including FOB, CFR, CIF, DDP, and EXW. Our standard delivery time is within 25 days.
